Display

eProⅡ

Application :Tractor control system, Transplanter control system, Sanitation vehicle control system

Characteristics:Open software platform

+86 21 5186 3677
Call the National Hotline for more information
Product catalogue

Product overview

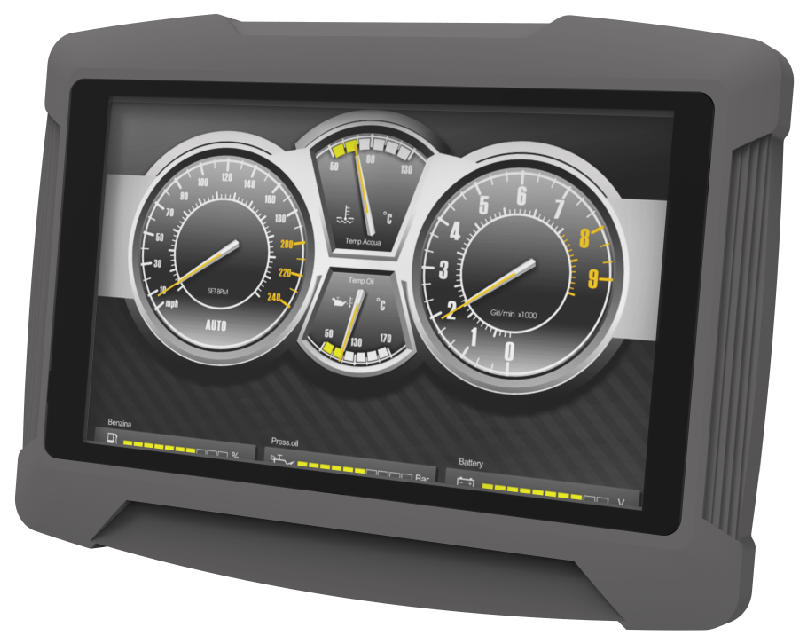

eProⅡ Series Display Description

Open software platform:eProⅡ interface looks very nice, support configuration development environment, very convenient to achieve virtual instrument, network communication and other functions. Can support IEC61131-3 standards-based CODESYS programming or visual studio and other development tools.

Strong extensibility:It can show 4-channel video at the same time, can extend GPS/GPRS, Bluetooth, WI-FI function, but also expand external storage space.

Application

Tractor Control System

Control system of transplanter

Sanitation Vehicle Control System

See the product catalogue for more information

Parameter

Kernel

Frequency

1GHz

Flash Disk

512MB

RAM

512MB

Display

Size

8.0''

Resolution

1024×600

Backlight (cd/m2)

600

Dimension(W×H×D)

230×170×50mm

Type

TFT true color

Brightness

Adjustable (Optional)

HMI

Touch Screen

Aseismic and pressure proof resistive touch
screen, with lifespan up to 5,000,000 times

Electrical Data

Power Supply

12V/24V system

Operation system

Linux

Program Platform

CODESYS

Environment Data

Protection Ingress

IP65

Working Temperature

-20℃~+70℃

Storage Temperature

-40℃~+85℃

Physical Data

Installation

Bracket mounting

Shell Material

Engineer plastic

Weight

1.26kg
