Home > Product > Display Controller

Display Controller

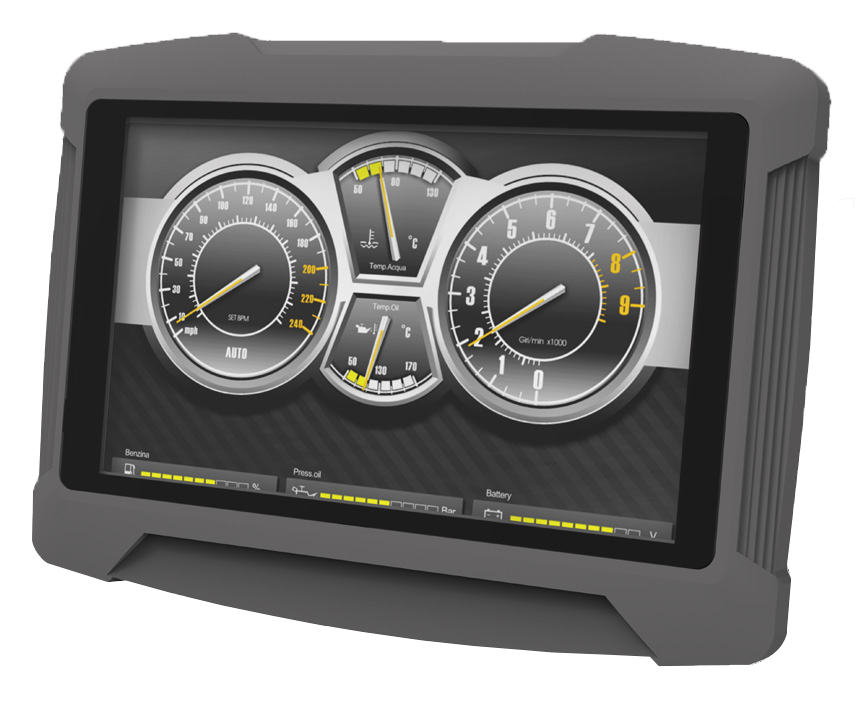

ePro II

Application : Sanitation Vehicle Control System

Characteristics:Open software platform

+86 21 5186 3677
 Call the National Hotline for more information
Product catalogue

Product overview

eProⅡ Series Display Description

Open software platform:eProⅡ interface looks very nice, support configuration development environment, very convenient to achieve virtual instrument, network communication and other functions. Can support IEC61131-3 standards-based CODESYS programming or visual studio and other development tools.

Strong extensibility:Can extend many functions such like GPS/GPRS, Bluetooth, WI-FI , and can also expand external storage space.

Application

Tractor Control System

Control system of transplanter

Sanitation Vehicle Control System

See the product catalogue for more information

Parameter

KERNEL

Frequency

1GHz

Flash Disk

512MB

RAM

512MB

DISPLAY

Size

8.0'' (10.1'' can customize)

Resolution

1024×600

Backlight (cd/m2)

600

Dimension(W×H×D)

230×170×50mm

Type

TFT true color

Brightness

Adjustable (Optional)

HMI

Touch Screen

Aseismic and pressure proof resistive touch
screen, with lifespan up to 5,000,000 times

ELECTRICAL DATA

Power Supply

12V/24V system

Software

Operate System

Linux

Program Plateform

CODESYS

ENVIRONMENT

Ingress Protection

IP65

Working Temperature

-20℃ ~+70℃

Storage Temperature

-40℃ ~+85℃

PHYSICAL DATA

Installation

bracket mounting

Material

Engineer plastic

Weight

1.26kg

Function

Q'ty

Function

Q'ty

CAN(CAN2.0B)

2

WI-FI

Optional

USB(USB 2.0)

1

GPS/GPRS

Optional

ETHERNET(10/100 M)

1

RS232

Optional

Video

2

Buzzer

Optional

I/O(DI/AI/DO)

Optional(20)

Touch screen

Optional
