Controller

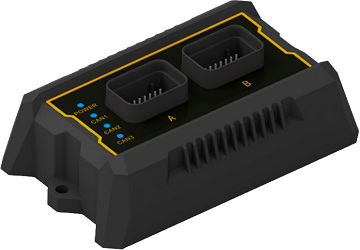

eCore640S

Application :Crane control system, excavator control system, paver control system, rotary drilling rig control system, crawler crane control system, safety monitoring system, fire truck control system

Characteristics:Abundant multi-functional I/O

+86 21 5186 3677
Call the National Hotline for more information
Product catalogue

Product overview

eCore640S controller description

High reliability: The controller is a highly reliable controller specially developed for mobile devices, with reverse protection and surge protection, which can adapt to the environment of vehicle electronic system.

Rich I/O ports : The designing of I/O ports is reasonable, it can adapt to a variety of simple or complex systems, multifunction port is flexible and convenient, it can achieve more complex configuration.

Application

Crane control system

Excavator Control System

Paver Control System

Rotary Drilling Rig Control System

Tower crane safety control system

Lift control system

Safety Monitoring System

Tractor Control System

Fire truck control system

See the product catalogue for more information

Parameter

Series eCore640S-I
IO 48
Port type 8*AIV/AIC ports
8*AIV/AIC/AIR/DIL ports
4*DIH/DIL/PI ports
6*DIH/DIL ports
8*DOH/DOL/PWM ports
2*DOH/PWM ports
11*DOH/PWMI/DIL ports
1*DOH/PWMI ports
2 channels of 5V reference power-supply
Communication interface 3x CAN,1x RS232
Software CODESYS V3.5
Operating temperature -30℃~+70℃
IP class IP66
Power supply 9~32V DC (12V/24V power system)
Consumption 70mA@24VDC(no-load)
Vibration EN 60068-2-52
EMC EN 61000-6-2:2005
ISO7637-2
Shell material Cast aluminium
