Application ：Crane control system,Excavator Control System
Characteristics：Superior performance
+86 21 5186 3677

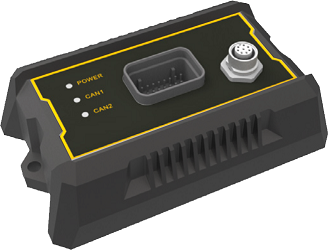

High reliability: The controller is a highly reliable controller specially developed for mobile devices, with reverse protection and surge protection, which can adapt to the environment of vehicle electronic system.
Rich I/O ports : The designing of I/O ports is reasonable, it can adapt to a variety of simple or complex systems, multifunction port is flexible and convenient, it can achieve more complex configuration.
Crane control system
Excavator Control System
Paver Control System
Rotary Drilling Rig Control System
Tower crane safety control system
Lift control system
Safety Monitoring System
Tractor Control System
Fire truck control system
See the product catalogue for more information
| Series | eCore320S-I | eCore320S-II |
|---|---|---|
| Function | ||
| IO | 24 | 26 |
| Port type |
6*DI/DO/PWM ports 15*AI/DI ports 3*PI/DI ports 1 channel of 5V reference power-supply |
8*DO/PWMI/DI ports the maximum value of feedback accuracy is 5mA 4*DO/PWM/DI ports 8*DO/DI ports 4*AI/DI ports 2*PI/DI ports 1 channel of 5V reference power-supply |
| Communication | ||
| Communication interface | 2x CAN，1x RS232 | 2x CAN，1x RS232 |
| Software | ||
| Software | CODESYS V3.5 | CODESYS V3.5 |
| Environment | ||
| Operating temperature | -40℃~+70℃ | -40℃~+70℃ |
| IP class | IP66 | IP66 |
| Power supply | 9~32V DC (12V/24V power system) | 9~32V DC (12V/24V power system) |
| Consumption | 100mA@24VDC(no-load) | 100mA@24VDC(no-load) |
| Vibration | EN 60068-2-52 | EN 60068-2-52 |
| EMC |
EN 61000-6-2:2005 ISO7637-2 |
EN 61000-6-2:2005 ISO7637-2 |
| Mechanical parameter | ||
| Shell material | Cast aluminium | Cast aluminium |
