IO Module

eMod 4404 Specification

Application :Construction vehicle

Characteristics:eMod is specially designed and made for extreme environment, with protecti on rati ng up to IP67.

+86 21 5186 3677
Call the National Hotline for more information
Product catalogue

Product overview

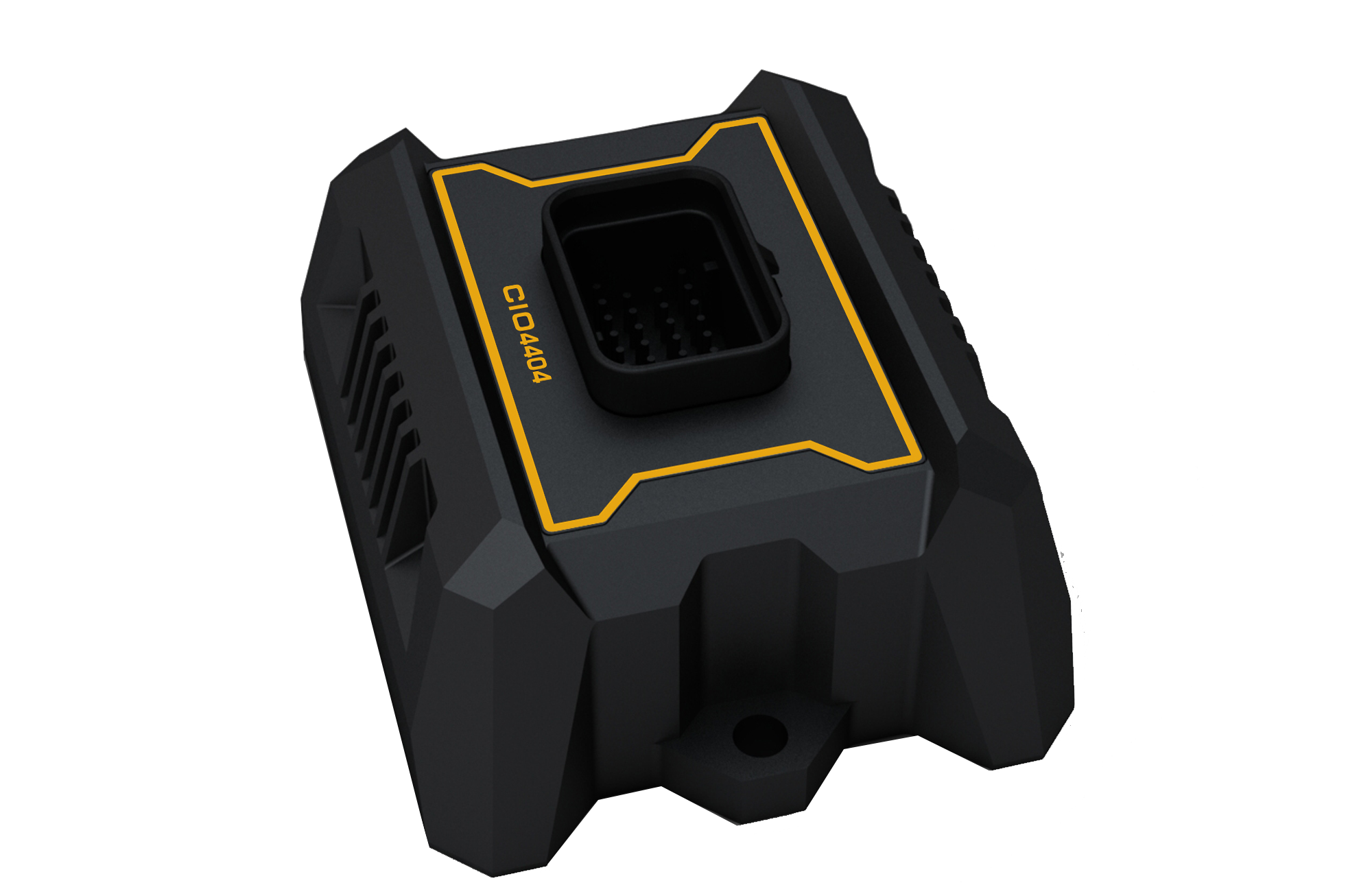

eMod4404 IO module

High reliability:eMod is specially designed and made for extreme environment, with protecti on rati ng up to IP67. It can be very reliable for working under the harsh environment of high & low temperature, and with strong interference.

Application

Crane control system

Excavator Control System

Paver Control System

Rotary Drilling Rig Control System

Tower crane safety control system

Lift control system

See the product catalogue for more information

Parameter

Kernel

Micro Processor

25MHz

Power Supply

Power Supply

9~36V DC

Ref. Voltage

5 V DC

Communication

Communication

CANopen

Environment

Working Temperature

-40℃ ~+85 ℃

Ingress Protection

IP67

Dimension

119×133×36 mm

Material

Heat resisting nylon shell

Weight

0.25kg

IO configuration

Port

AI_V(AI_C/DI_L)

PI(DI_H)

DI_H

DO_H(PWM)

Total IO

eMod

4(4/4)

1(1)

(17*)

12(12)

17

Remark: Above is the maximun IO configration, could realize by software.

(*)it means the max. IO port could be reuse

AI-V: 0~5V analog input

AI-C: 0~20mA analog input

DI-H: PNP input

DI-L: NPN input

PI: impulse input

DO-H: PNP output

PWM: PWM output
